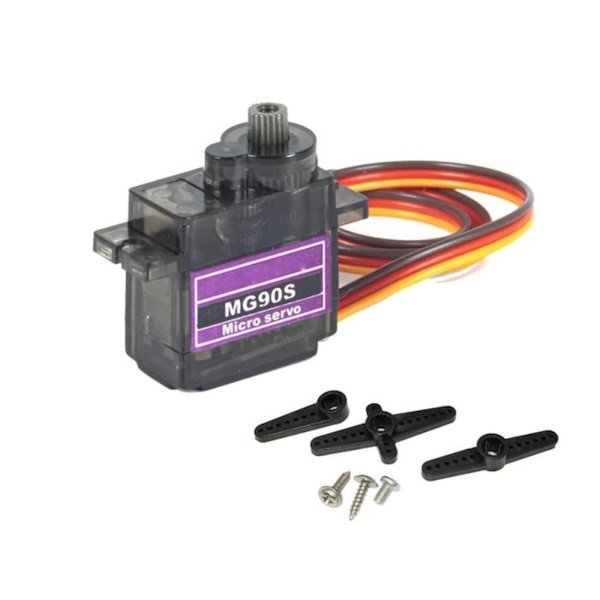

Servo motor MG90S Micro 90°

Category Tag

Item Code: SV122

Micro servo MG 90S , dimensions 3.2×3.5×1.3 cm. Torque 1.7 kg/cm (with 4.8V power supply), 2.0 kg/cm (with 6V power supply).

Specifications:

  • operating voltage 4.8 – 6V / 1W
  • gearbox: plastic
  • dimensions 32.2 x 31.7 x 12.3 mm
  • height from flange to mounting shelf 8.5 mm
  • shaft height: 3.5 mm (+/- 0.1 mm)
  • rotation angle: ~ 90°
  • torque 1.8 kg/cm (with 4.8V power supply), 2.2 kg/cm (with 6V power supply)
  • operating temperature range 0 ~ 55 °C
  • rotation speed 0.15 s / 60° (at 4.8V), 0.12 s / 60° (at 6V)
  • Weight: 14 g
