Item Code: SV125

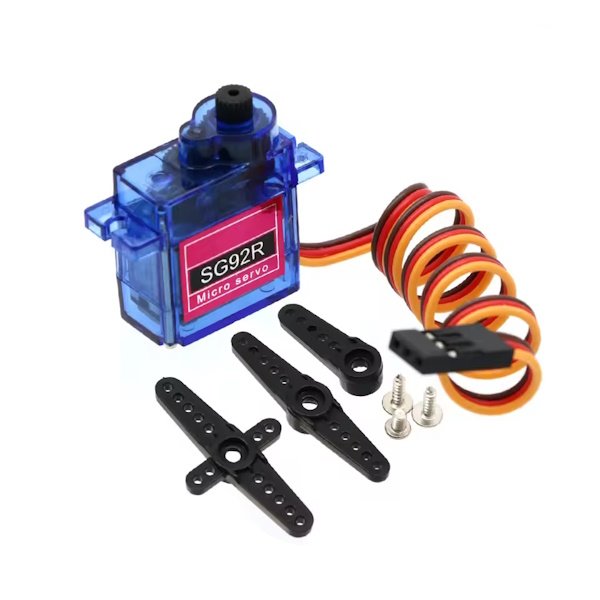

The SG92R digital servo is a new, improved version of the SG90. Its carbon fiber power takeoff gearbox and control arms are more durable than the nylon SG90’s, and it also offers increased torque. It’s a good choice for 3D models and high-speed airplane and helicopter models.

The included levers and screws are compatible with the Futaba servo. The universal “S” connector fits most receivers, including Futaba, JR, Hitec, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, and Spektrum.

Specifications:

• Torque: 2.5 kg/cm (4.8 V)
• Gearbox type: POM with carbon fiber
• Working speed: 0.1 sec / 60° (4.8 V)
• Rotation angle: 160º
• Operating voltage: 4.8 V
• Operating temperature range: 0 to +55 °C
• Dead zone: 10 µs
• Wire length: 25 cm
• Servo Plug: JR (Suitable for JR and Futaba)
• Weight: 9 g
• Size: 23 x 12.2 x 27 mm
