Item Code: SV126

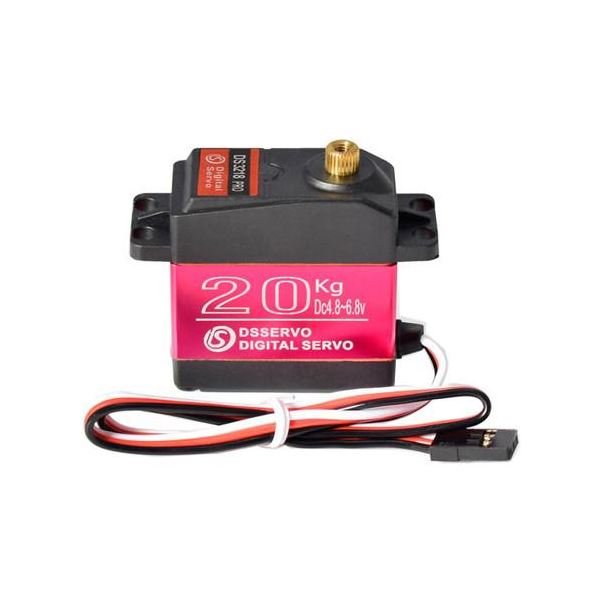

Servo drive DSSERVO DS3218MG – a motor with a special gearbox, capable of rotating the output shaft to a given position (angle) and holding it there with a certain force. This model has metal gears and a waterproof housing, thrust force – 18 kg. The force is transmitted using a “rocking chair” – a lever with holes for fastening mechanization elements: elevator/aileron rods, wheel axles, robot legs, locks, etc.

Characteristics:

• Model: DS3218MG-180 (25T)
• PWM frequency: 50-333 Hz
• Gearbox type: metal
• Rotation angle: 180°
• Operating voltage: 4.8 – 6.8 V / 2.0 – 2.5A
• Rotation speed (5.0V): 0.16 s / 60°
• Turning speed (6.8): 0.14 s / 60°
• Pull force (5.0V): 18 kg
• Pull force (6.8V): 21 kg
• Servo dimensions: 40 x 40.5 x 20 mm
• Weight: 68 g
