Item Code: SV123

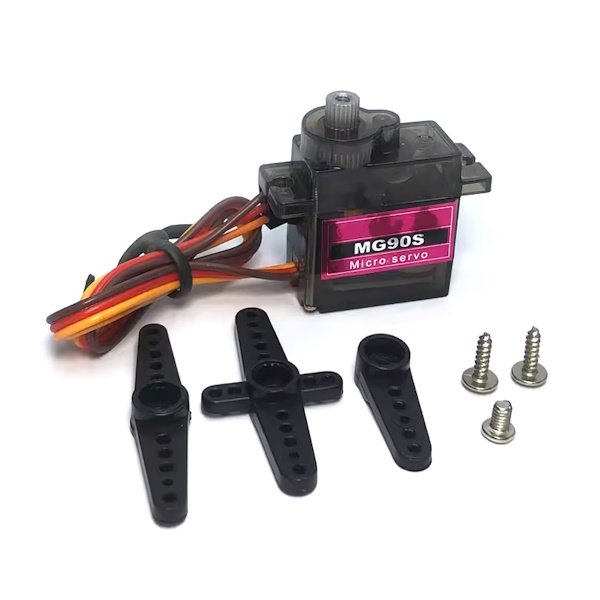

MG90S micro servo with metal gear reducer, dimensions 3.2×3.2×1.2 cm. Torque 1.8 kg/cm (at 4.8V power supply), 2.2 kg/cm (at 6V power supply).

Specifications:

• operating voltage 4.8 – 6V
• dimensions 32.3 x 32.5 x 12.3 mm
• height from flange to mounting shelf 8.3 mm
• shaft height: 4.1 mm (+/- 0.1 mm)
• rotation angle: 90º
• torque 2.0 kg/cm (with 4.8V power supply), 2.4 kg/cm (with 6V power supply)
• operating temperature range 0 ~ +55 °C
• rotation speed 0.1 s / 60° (at 4.8V), 0.08 s / 60° (at 6V)
• drive: metal (magnetic)
• metal gears of the gearbox
• Weight: 12 g
