Item Code: MD044

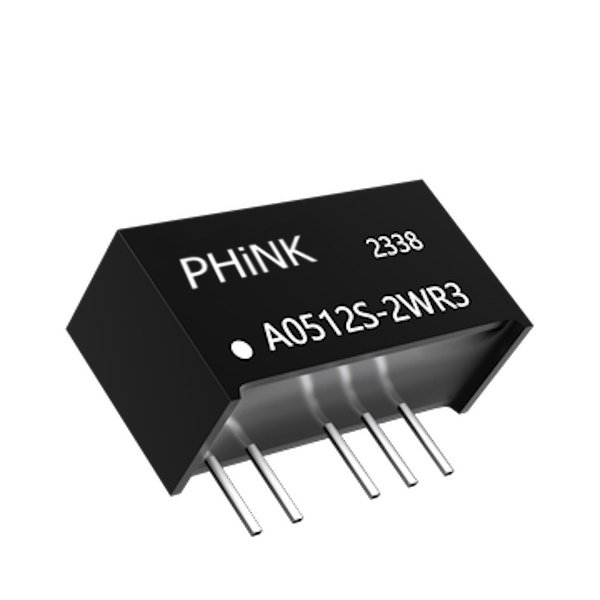

A DC-DC voltage converter with galvanic isolation is designed to power equipment and circuit parts with voltage that is not galvanically connected to the power source.

Characteristics:

• Voltage conversion type: DC/DC
• Rated input voltage: 5 V
• Rated output voltage: +/- 12 V
• Maximum output current: 84 mA
• Ripple amplitude: no more than 100 mV
• Maximum short circuit time: 1 sec.
• Insulation voltage: 1500 V
• Isolation insulation resistance: 1000 MΩ
• Isolation capacitance: 20 pF
• Decoupling converter conversion frequency: 100 KHz
