Item Code: MD043

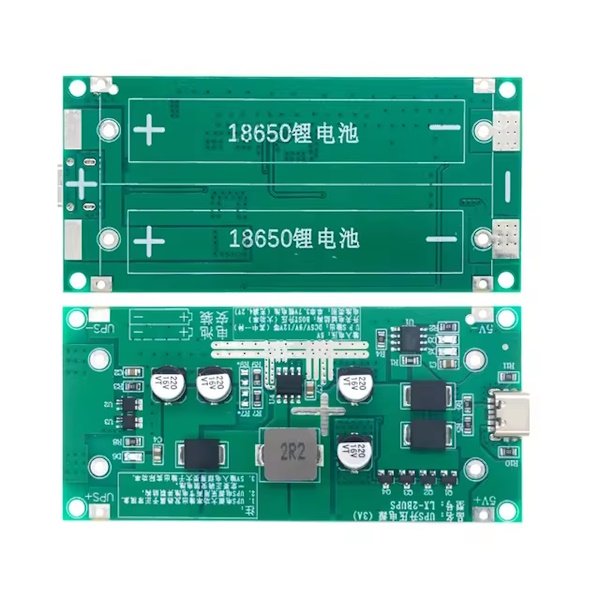

This module is designed for building uninterruptible power supplies with a 12V output voltage and output power of up to 15W. It is powered by an external 5V power source with a Type-C connector. When the input voltage is present, the load is powered by the input voltage, while the batteries are simultaneously charged. If the input voltage is lost, the load is powered by the batteries. The module can be used with either internal batteries or larger-capacity external batteries.

Before installing batteries, be sure to ensure correct polarity! Incorrect polarity will, at worst, result in complete device inoperability.

Specifications:

• Battery type: 18650 without protection
• External power supply voltage: 5 V
• Output voltage: 12 V
• Maximum output current: 1.2 A
• Protections: overcharge, overdischarge, overload, short circuit at the output
