Item Code: MD021

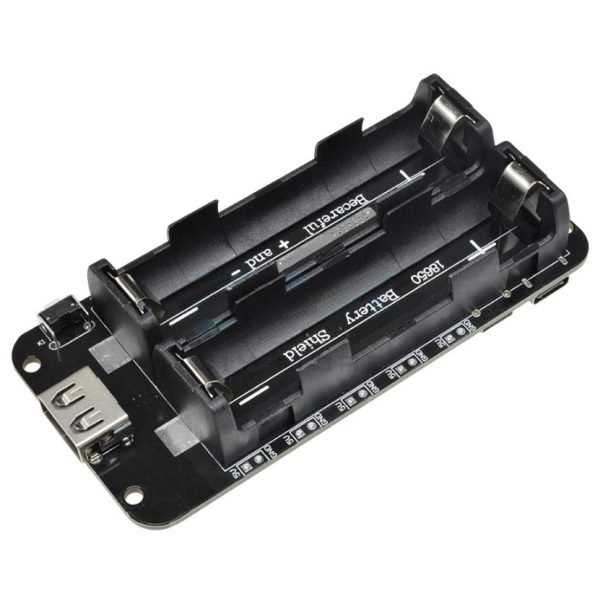

The autonomous power supply module is a combination of two devices – a lithium battery charger and a 3V to 5V step-up converter, which is suitable for powering 3V and 5V devices: Arduino controllers, Orange Pi and Raspberry Pi mini-computers, and others, as well as charging mobile devices, acting as an autonomous power source.

Battery connection – parallel.

Attention! Strictly observe the polarity of the charger and battery connection! If connected incorrectly, the device is guaranteed to fail!

Characteristics:

• Battery type: 18650 Li-Ion (unprotected)
• Charger voltage: 5 to 8 V
• Output voltage:
  • 3 V – directly from the battery through a protective device
  • 5 V – through a boost converter.
• Maximum output current:
  • Output 3 V – 1 A
  • Output 5V – 2A (maximum 3A)
• Maximum charging current: 2.2 A

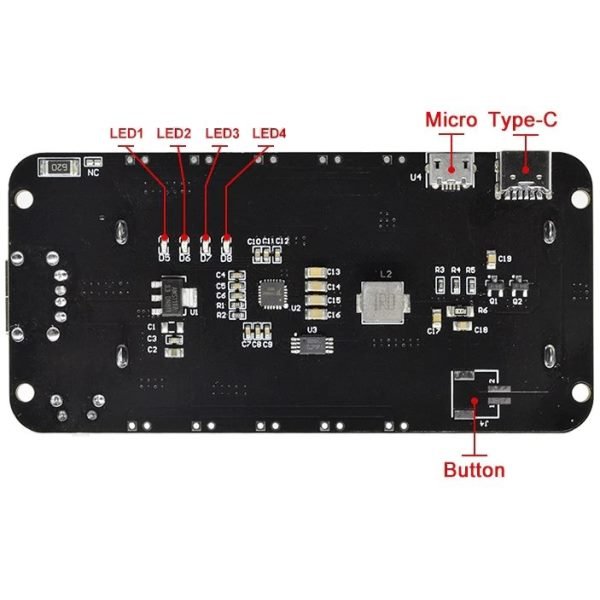

• Input connector type: micro-USB and USB Type-C
• Output connector type: USB-A
