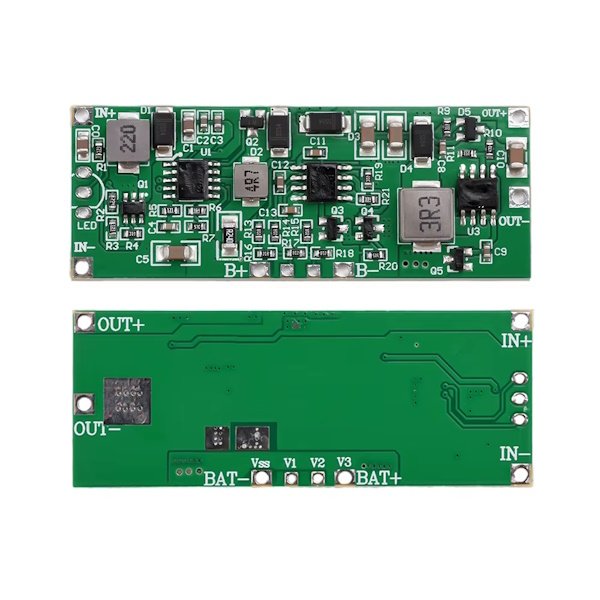

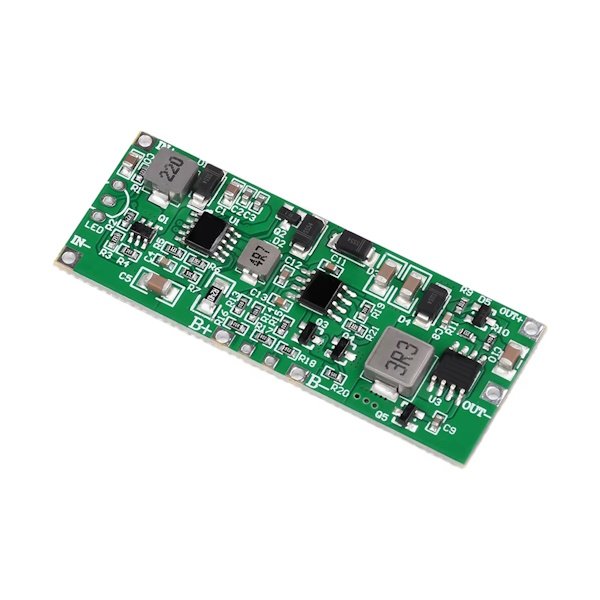

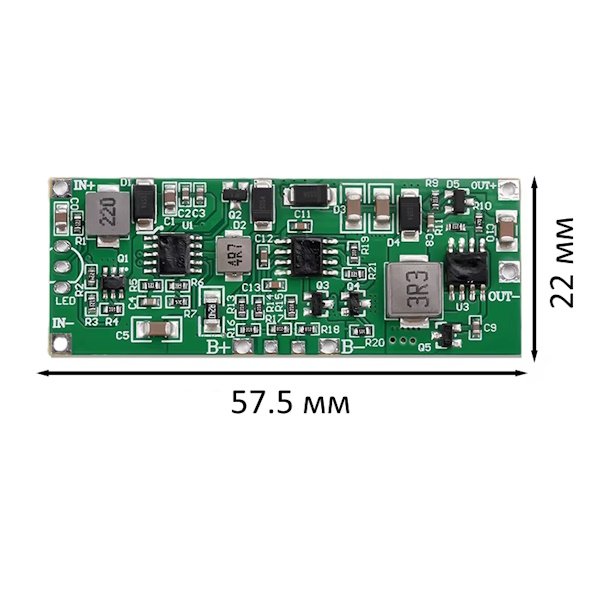

Item Code: MD051

This module is designed to provide uninterrupted power supply for equipment with a power consumption of up to 36 W and a supply voltage of 11 to 13 V based on 3S LiPo batteries. The module provides functions for monitoring battery charge, discharge, and quick switching from charge mode to battery power mode.

Characteristics:

• Input voltage: 12 V DC
• Output voltage: 12 V (11 V to 13 V)
• Output power: 36W (MAX)
• Battery charging current: 0.5 A (MAX)
• The specific input current depends on the operating load current plus the charging current (0.5 A)
• Battery overcharge and overdischarge protection function
• Switching to backup power source: Automatic
