Item Code: SV115

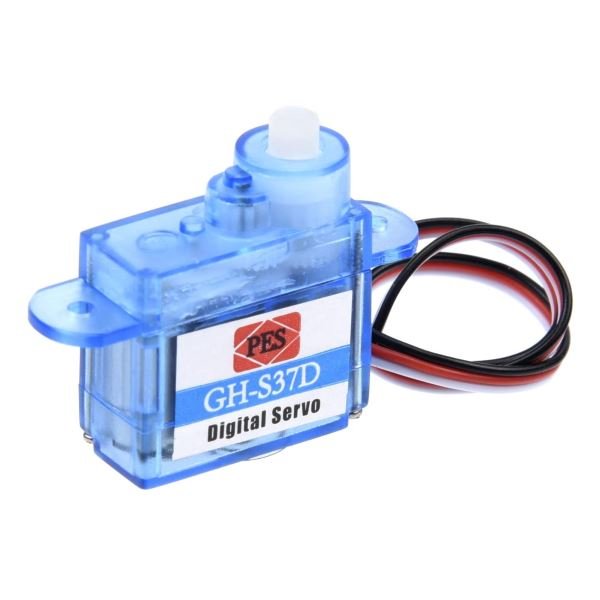

A small digital servo motor. Dimensions: 20.1 x 9.2 x 17.6 mm, weight: 3.7 g. Power supply: 3.6 – 4.8 V.

Specifications:

• Rotation speed: 0.15 sec / 60 ° (no load)
• torque: 0.5 kg/cm at 4.8V
• rotation angle: 120 °
• PWM frequency: 500-1000 Hz
• dead zone: 4 µs
• Max. holding current 150-200 mA
• Bearing material: nylon
• Cable length: 150 mm
• weight: 3.7 g
• dimensions: 9.2 x 17.6 x 20.1 / 24.6 mm (with shaft)
