Item Code: MD038

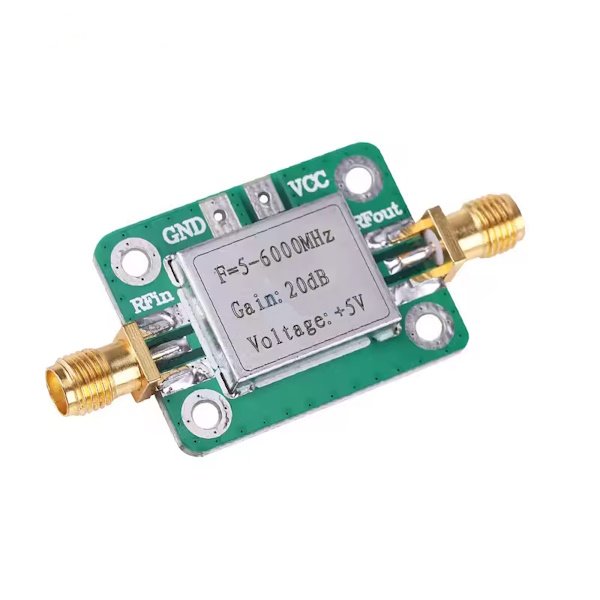

RF power amplifier 5-6000 MHz with 20 dB gain with large dynamic range and wide operating frequency range. Supply voltage is 5 V DC, operating current is 85 mA. Maximum output power is 21 dBm (100 mW) at 1 dB compression point. Suitable for all types of fixed gain RF amplification.

Characteristics:

• Operating frequency: 5 to 6000 MHz
• Amplifier gain: 20 dB
• Max. output power: +21 dBm (100 mW) at 1 dB compression point
• Operating current: 85 mA (5 V)
• Supply voltage: 5 V DC
• System impedance: 50 ohms
• Size: 34*25 mm

Note: When using, the appropriate principles of layout of RF and microwave circuits should be followed.
