Item Code: MD036

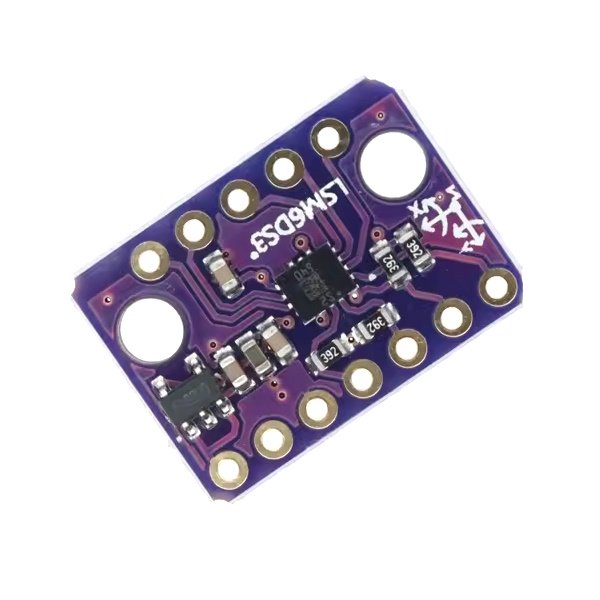

The LSM6DS3 accelerometer and gyroscope module is designed to determine the value and direction of the acceleration vector. An excellent solution for building simple robots, aircraft, etc.

Characteristics:

• Sensor chip: LSM6DS3
• Measured parameters: 3 gyro vectors and 3 acceleration vectors
• Supply voltage: from 1.9 V to 5 V
• Accelerometer full scale: ±2/±4/±8/±16 g
• Gyro full scale: ±125/±250/±500/±1000/±2000 DPS
• Digital connection interface: SPI/I2C
• Supply voltage of the analog part of the sensor: from 1.9 to 5 V
• Power saving modes: Full power off / Low power mode
• Interrupts: fully programmable for no motion, motion detector, rotation detector
• Additional sensors: temperature sensor
• Transmission organization: built-in 8 KB FIFO buffer
