5.0mm 5.08mm pitch pluggable Terminal block Connector

5.0mm 5.08mm pitch pluggable Terminal block Connector - Image 2

5.0mm 5.08mm pitch pluggable Terminal block Connector - Image 3

5.0mm 5.08mm pitch pluggable Terminal block Connector - Image 4

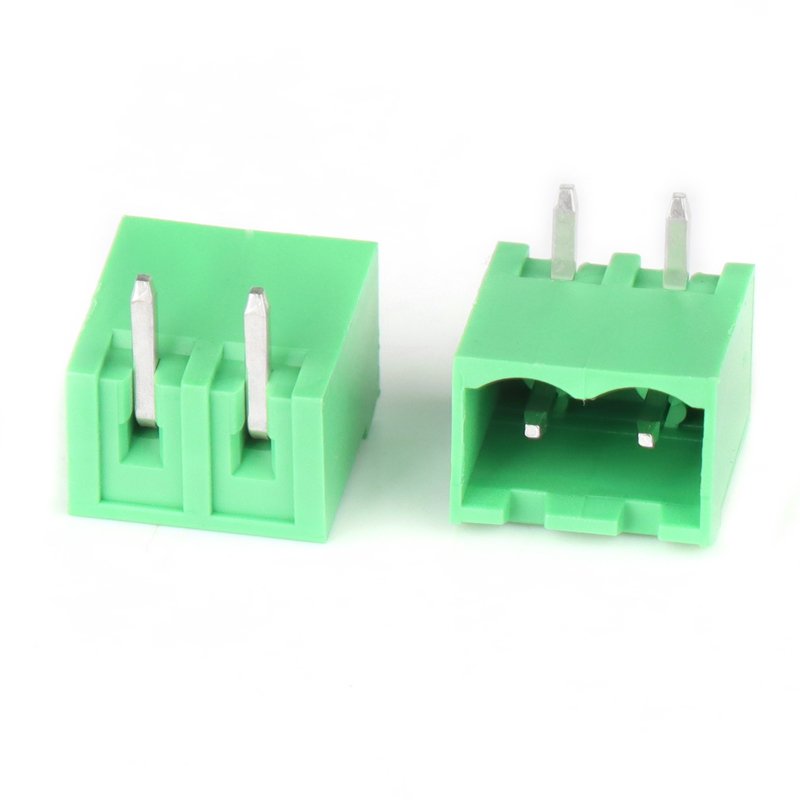

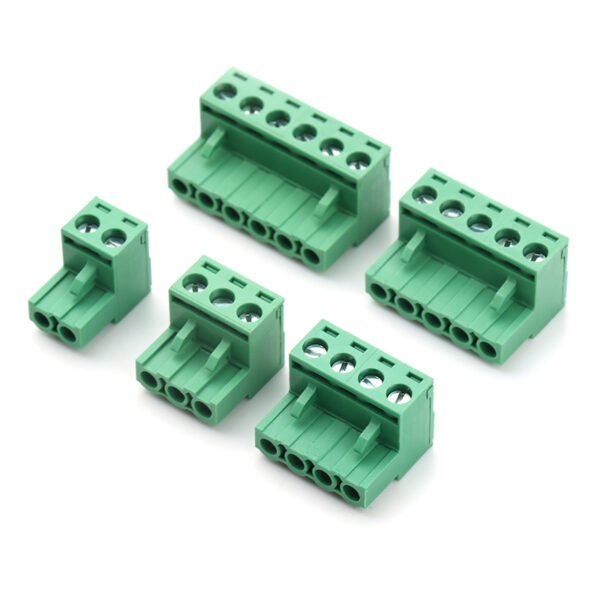

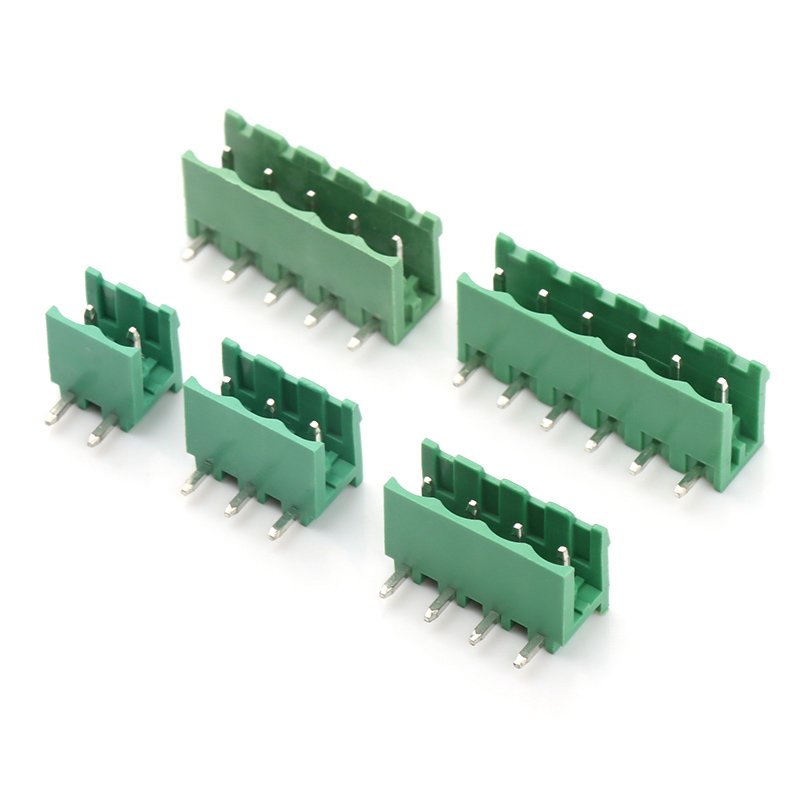

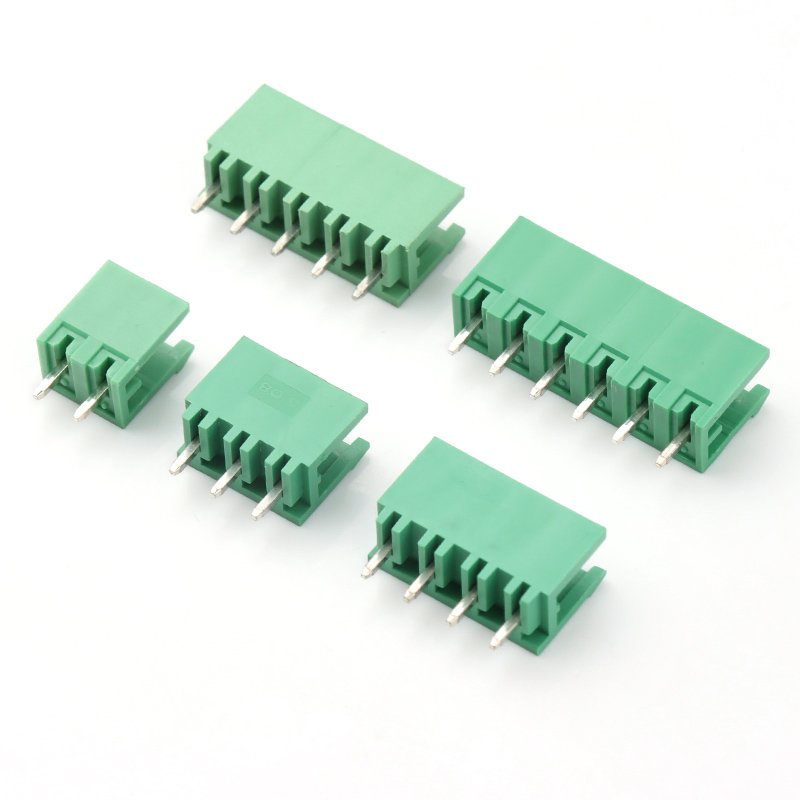

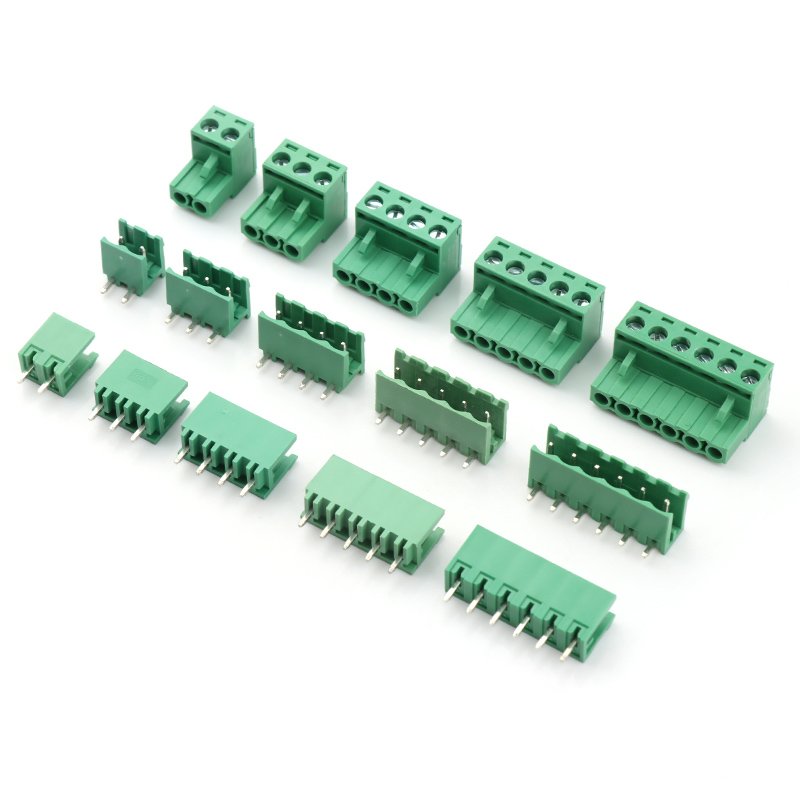

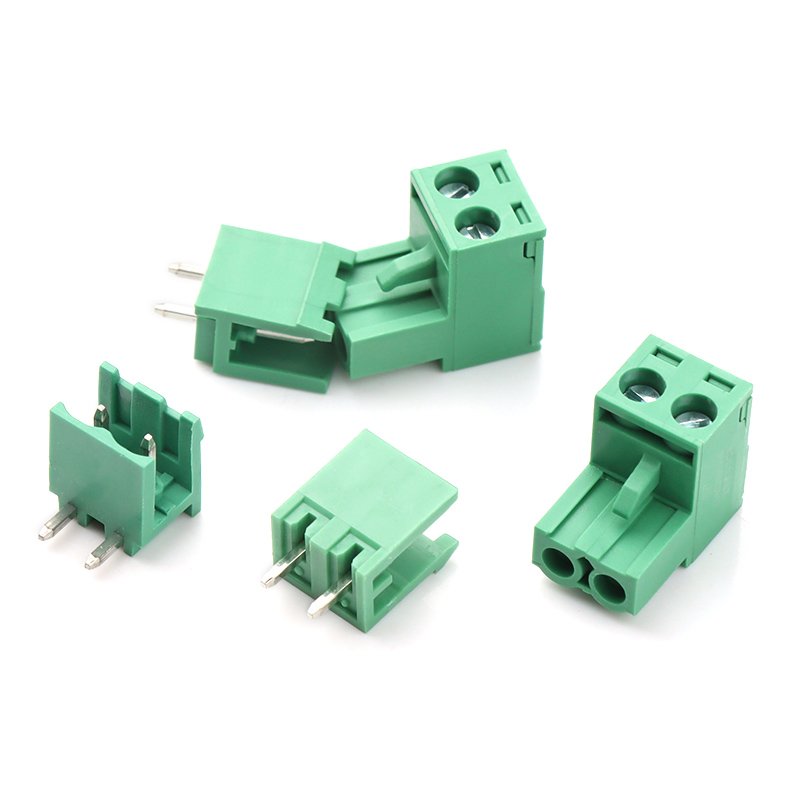

Pluggable terminal blocks consist of femlae plug and male header. Green color is common. Black color is also available.

Additional information

Pitch	5.08mm, 5.0mm
Current Rating	300V 10A
Wire Gauge Range	28-12AWG
Number of Positions	2-24P

Product Details:

Material:
Screw: M2.5, Steel, galvanized
Contact:Phosphor bronze, nickel plated
Blocks:Brass, nickel plated
Plastic:PA66. UL94V-0

Pluggable terminal blocks, Available different pitches can be choose, you can choose the insert direction, contact direction, plug-in direction according to your requirement.

Pluggable terminal block are widely used in almost all electronic equipment, such as communication equipment instruments, computers, automatic control systems, household appliances and alarm equipment, etc.
